Fiber-Reinforced Concrete

Fiber-Reinforced Concrete

    Concrete is a vital piece of any development project, regardless of whether you are building streets, a ground floor in your private home, or a power plant. This is because concrete is very durable, but it can be susceptible to fractures as subsoil frosts and thaws, assuming it shifts, or on the other hand assuming tree roots press up on the substantial. This can be a significant issue for development projects, as cracks lead to exorbitant fixes and could spell disaster. Introducing reinforced concrete is the best solution for this problem.

What is reinforced concrete

    Concrete is reinforced when it has reasonable fibers in the blend to build its durability and flexibility. Unlike non-reinforced concrete that is likely to break down when it fractures and cracks, reinforced fibre concrete will maintain its structural integrity, as it is held together by these fibres when a break creates.

    Fibers include steel fibers, glass fibers, engineered fibers, and natural fibers. Inside these various fibers, the personality of fiber reinforced concrete changes with varying concretes, fiber materials,  geometries, distribution, orientation, and densities.

    The shape, dimension, and length of fiber is significant. A thin and short fiber, for instance, short hair-formed glass fiber, only be effective the first hours after pouring the concrete but will not increase the concrete tensile strength.

Effect of Fibers in Concrete

    Fibres are typically utilized in cement to control plastic shrinkage cracking and drying shrinkage cracking . They likewise bring down the permeability of concrete and hence reduce the draining of water. Some kind of fibers produce greater impact, abrasion and shatter resistance in concrete. By and large, fibers don't build the flexural strength of concrete, so it can not replace moment resisting or structural steel reinforcement. A few fibers decrease the strength of concrete.The amount of fibers added to a concrete mix is measured as a percentage of the total volume of the composite (concrete and fibers) termed volume fraction (Vf).  Vf commonly goes from 0.1 to 3%. Aspect ratio (l/d) is determined by separating fiber length (l) by its diameter (d). Fibers with a non-circular cross-section utilize an equivalent diameter for the computation of aspect ratio. Assuming the modulus of flexibility of the fiber is higher than the  matrix (cement or mortar fastener), they help to carry the load by increasing the tensile strength of the material. An increase in the aspect ratio of the fiber usually segments the flexural strength and toughness of the matrix. Nonetheless, fibers that are excessively long tend to "ball" in the blend and make workability issues. Some recent research indicated  that adding fibers in concrete has a limited effect on the impact resistance of concrete materials. This finding is vital since generally individuals think the ductility increments when concrete reinforced with fibers.  The outcomes likewise called attention to that the microfibres are better in impact resistance compared with the longer fibers.

Different Types of Fiber Reinforced Concrete

Following are the different type of fibers generally used in the construction industries.

• Steel Fiber Reinforced Concrete
• Polypropylene Fiber Reinforced (PFR) cement mortar & concrete
• GFRC Glass Fiber Reinforced Concrete
• Asbestos Fibers
• Carbon Fibers
• Organic Fibers

  1. Steel Fiber Reinforced Concrete

    A number of steel fiber types are accessible as reinforcement. Round steel fiber, the commonly utilized type are created by slicing round wire in to short length. The average diameter across lies in the range of 0.25 to 0.75mm. Steel fibers having a rectangular cross section are created by silting the sheets around 0.25mm thick. Fiber produced using mild steel drawn wire. Conforming to IS:280-1976 with the diameter of wire changing from 0.3 to 0.5mm have been utilized in India . Round steel fibers are created by cutting or hacking the wire, flat sheet fibers having a typical cross section varying from 0.15 to 0.41mm in thickness and 0.25 to 0.90mm in width are produced by silting flat sheets. Deformed fiber, which are inexactly limited with water-soluble glue as a group are likewise accessible. Since individual fibers will generally bunch together, their uniform distribution in the grid is regularly troublesome. This might be abstained from by adding fibers groups, which separate during the blending process.

                                                    Fig 1. Steel Fiber Reinforced Concrete

2. Polypropylene Fiber Reinforced (PFR) cement mortar and concrete

    Polypropylene fiber reinforced concrete is otherwise called polypropene or PP. It is an synthetic fiber, changed from propylene, and utilized in an variety of applications. These fibers are typically utilized in concrete to control cracking because of plastic shrinkage and drying shrinkage. They additionally lessen the porousness of concrete and in this manner diminish the draining of water. Polypropylene fiber has a place with the gathering of polyolefins and is to some extent translucent and non-polar. It has comparable properties as polyethylene, however it is harder and more heat resistant. It is a white tough material with high chemical resistance. Polypropylene is fabricated from propylene gas within the sight of an impetus like titanium chloride. Polypropylene fiber shows great hotness protecting properties and is profoundly impervious to acids, alkalies, and natural solvents.

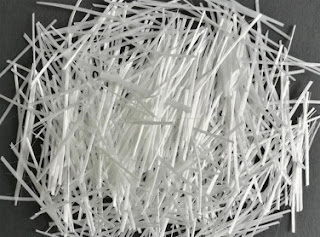

Fig 2. Polypropylene Fiber

3. GFRC - Glass Fiber Reinforced Concrete

Glass fiber reinforced concrete is a material comprising of various very fine fibers of glass. Glass fiber has generally practically identical mechanical properties to different strands like polymers and carbon fiber. Albeit not generally so unbending as carbon fiber, it is a lot less expensive and altogether less fragile when utilized in composites. Glass fibers are subsequently utilized as a supporting specialist for some polymer items; to frame an exceptionally solid and moderately lightweight fiber-reinforced polymer (FRP) composite material called glass-reinforced plastic (GRP), additionally prevalently known as "fiberglass". This material contains practically zero air or gas, is denser, and is a lot less fortunate warm separator than is glass fleece.

Fig 3. Glass Fiber-Reinforced Polymers



 4. Polyester Fibers

    Polyester fibers are utilized in fiber-reinforced  concrete for modern and stockroom floors, asphalts and overlays and precast items. Polyester microand macro fibers are utilized in concrete to give better opposition than the arrangement of plastic shrinkage breaks versus welded wire texture and to improve strength and the capacity to convey underlying limit when appropriately planned, separately. Polyester microand macro fibers are utilized in concrete to give better opposition than the development of plastic shrinkage breaks versus welded wire texture and to improve durability and the capacity to convey underlying limit when appropriately planned, separately.

5. Carbon Fibers

    Carbon fibers are fibers around 5-10 micrometers in measurement and made generally out of carbon atoms. Carbon fibers have a few benefits including high stiffness, high tensile strength, low weight, high chemical resistance, high-temperature resilience and low thermal expansion. Carbon fibers are generally joined with different materials to shape a composite. When impregnated with a plastic resin and heated it structures carbon-fiber-reinforced polymer (frequently alluded to as carbon fiber) which has an exceptionally high strength-to-weight proportion, and is very inflexible albeit fairly weak. Carbon fibers are additionally composited with different materials, like graphite, to frame reinforced  carbon composites, which have an exceptionally high heat resistance.

Fig 4. Carbon Fibers



6. Natural Fibers

Natural fiber, for example, polypropylene or regular fiber might be synthetically more latent than one or the other steel or glass fibers. They are likewise less expensive, particularly if natural. An enormous volume of vegetable fiber might be utilized to acquire a numerous breaking composite. The issue of blending and uniform scattering might be addressed by adding a superplasticizer.

Fig 5. Natural Fibers



Advantages of Fiber-reinforced concrete

•  Fibers reinforced concrete might be valuable where high elasticity and reduced breaking are desirable or when regular support can't be set.
•  It further develops the effect strength of concrete, restricts the break development and prompts a more noteworthy strain limit of the composite material.
•  For modern activities, macro-synthetic fibers are utilized to improve concrete’s durability. Produced using synthetic materials, these fabric are long and thick in size and might be utilized as a swap for bar or  fabric reinforcement.
• Adding fibers to the concrete will further develop its freeze-defrost obstruction and assist with keeping the concrete strong and attractive for broadened periods.
• Increment protection from plastic shrinkage during restoring.
•  Limits steel reinforcement requirements.
• Controls the break widths firmly, consequently further developing durability.
• Diminishes segregation and drain water.
•  FRC, strength is around 10 to 40 times that of plain concrete.
• The expansion of fibers expands weakness strength.
• Fibers increment the shear limit of reinforced concrete beams.

    Durability to aesthetics fiber-reinforced concrete can add advantages to your venture. Fiber-reinforced concrete has been quickly developing all through the structure business since contractors and property holders began to perceive its many advantages. Fiber Reinforced Concrete is acquiring an expanding interest among the substantial local area for the diminished development time and work costs. Other than cost issues, quality matters are of fundamental significance for development and fiber-reinforced concrete additionally satisfies these necessities.
